Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

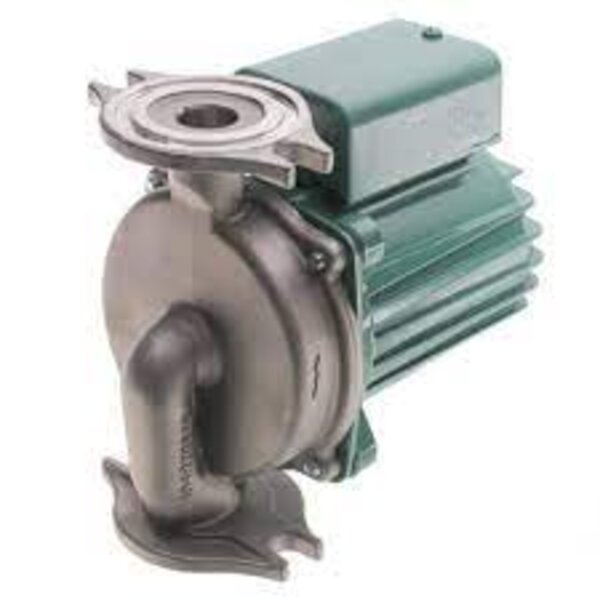

The Taco 009 Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head/lower-flow water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head /lower-flow heat recovery, open-loop solar heating and light commercial/domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
Performance DataFlow Range: 0-10 GPM
Head Range: 0-35 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged
FeaturesStandard High Capacity Output-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability –Maintenance Free Universal
Flange-to-Flange Dimensions
Cast Iron or Stainless Construction
Replacement Parts List:Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0010-012RP
Cartridge Assembly Complete: 009-022RP
The Taco 009 Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head/lower-flow water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head /lower-flow heat recovery, open-loop solar heating and light commercial/domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
Performance DataFlow Range: 0-10 GPM
Head Range: 0-35 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged
FeaturesStandard High Capacity Output-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability –Maintenance Free Universal
Flange-to-Flange Dimensions
Cast Iron or Stainless Construction
Replacement Parts List:Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 0010-012RP
Cartridge Assembly Complete: 009-022RP
| Material | Stainless Steel | |
| Amperage | 1.4 | |
| RPM | 3250 | |
| Hertz | 60 | |
| Max Pressure (PSI) | 125 | |
| Connection Size | 1-1/4″ 1-1/2″ 1″ 3/4″ |
|
| Head Range (ft.) | 0-35 | |
| Max Flow (GPM) | 10 | |
| Temperature Range (F) | 40°F to 230°F |
