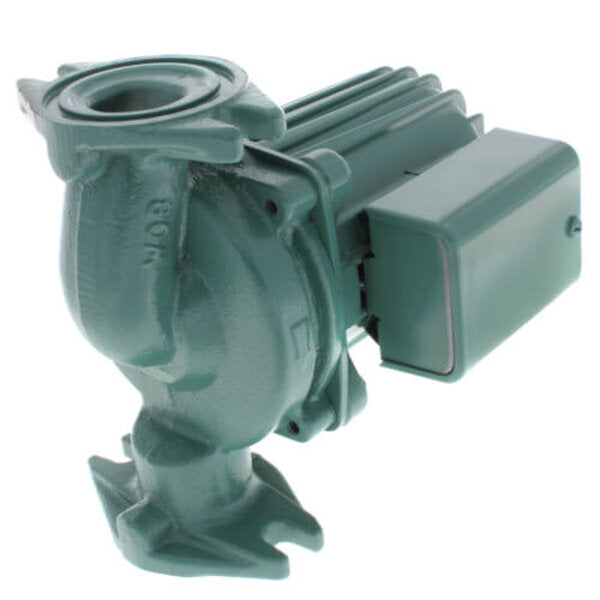

Taco 0014-F1-1IFC Cast Iron Circulator with Integral Flow Check, 1/8 HP

Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Performance DataFlow Range: 0-29 GPM
Head Range: 0-23 Feet
Minimum Fluid Temperature: 40+F (4+C)
Maximum Fluid Temperature: 230+F (110+C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2 Flanged
The 0014-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with “00” circulators on medium head/medium flow Hydronic or Radiant heating, Hydro-Air Fan Coils or closed loop solar heating systems. by locating the patented IFC inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs. The reduced pressure drop of the IFC, increases the flow performance over in-line check valves. Both the IFC and cartridge are easily accessed for service instead of replacing the entire unit. The 0014-Z-IFC combines the circulator, flow-check and patented Priority Zoning control with built-in transformer, relay and priority switch in one complete, compact package to make it ideal for zoning.
Features

• Integral Flow Check (IFC) Patent# 5,664,939
• Prevents gravity flow
• Eliminates separate in-line flow check
• Reduces installed cost, easy to service
• Improved performance vs. In-line flow checks
• Unique replaceable cartridge-Field serviceable
• Unmatched Reliability –Maintenance Free
• Quiet, efficient operation
• Direct drive-Low power consumption
• Self-lubricating, No mechanical seal
• Standard high capacity output-Compact design
• Wide range of applications
• Cast Iron or Bronze Construction, Flanged connections

Typical Applications

• Medium head/medium flow Hydronic or Radiant heating
• Hydro-Air Fan Coils
• Closed loop solar heating systems

Replacement Parts List:Casing O-Ring: 009-028RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0014-004RP
Valve Assembly Trans/Relay: 0012-021RP
