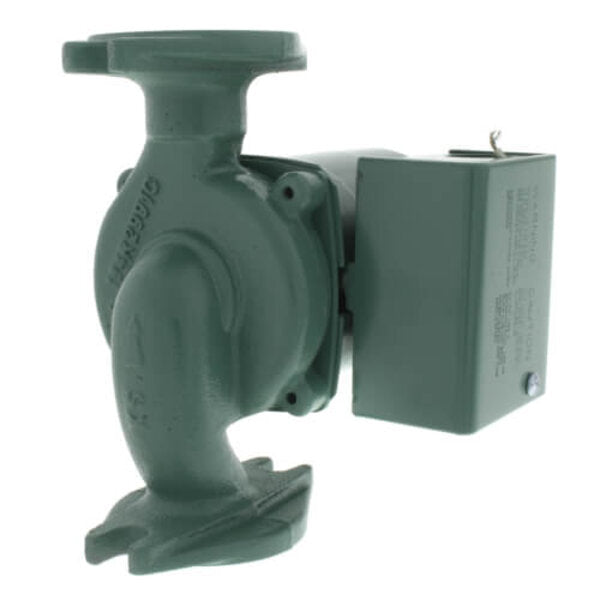

The Taco High Velocity Series 0011 Cartridge Circulator is specifically designed for high-head/medium-flow applications in large residential/light commercial closed-loop hydronic heating and chilled water cooling systems.
- Exclusive, anti condensate baffle (ACB) protects motor windings on chilled water jobs.
- Available in cast iron or stainless steel construction Stainless steel can be used on open-loop systems.
- Unique, family replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
- Universal flange-to-flange dimensions and orientation allow the 0011 to easily replace other models.
Features:
- Exclusive ACB (Anti-Condensate Baffle) with Ambient Air Flow Protects motor windings against condensate buildup.
- High Velocity Performance
- Compact Design
- Quiet, Efficient Operation
- Unique Replaceable Cartridge Design- Field Serviceable
- Direct Drive-Low Power Consumption
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability –Maintenance Free
- Universal Flange-to-Flange Dimensions
- Cast Iron or Stainless Steel Construction
Replacement Parts List:Casing O-Ring: 009-005RP

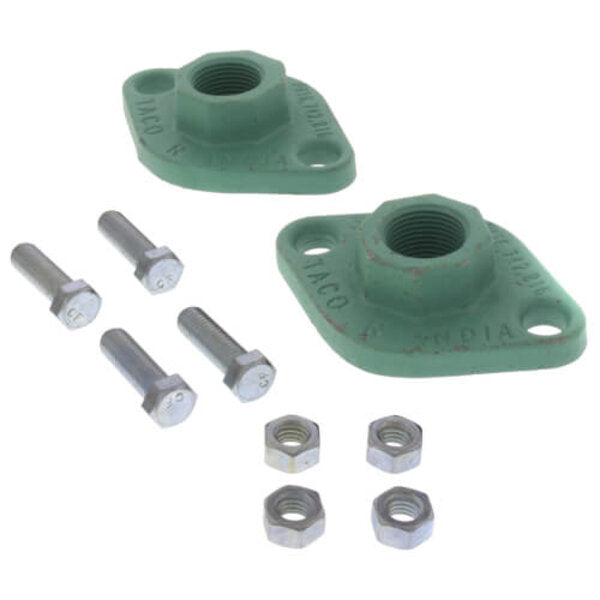

Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP

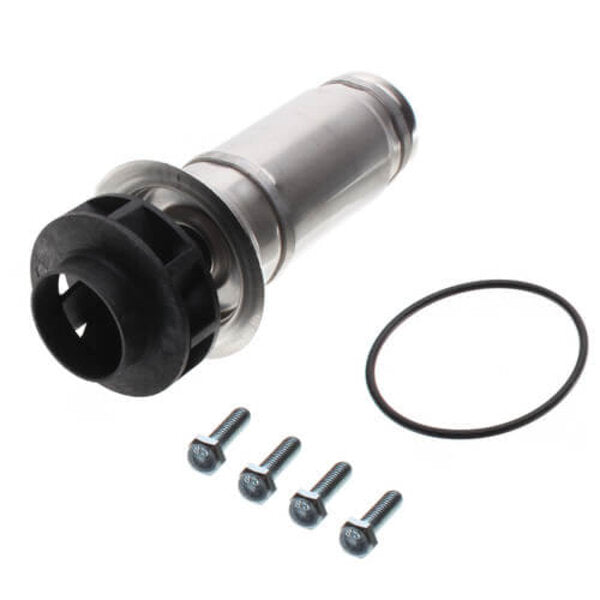

Cartridge Assembly Complete: 0011-010RP
| Flow Range (GPM) | 0-31 | |
| Max Head (Ft) | 31 | |
| Max Pressure (PSI) | 125 | |
| Material | Cast Iron |
